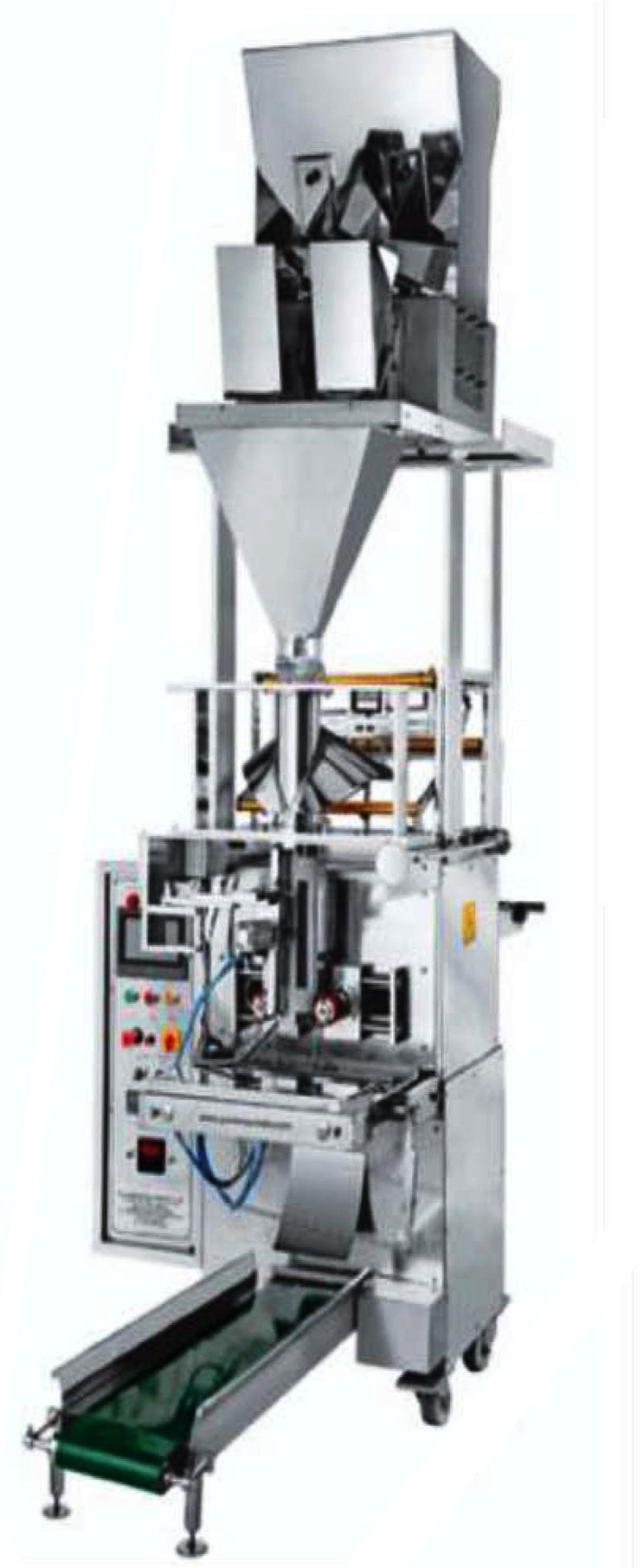

Collar with Double Head Weighing Filler Pouch Packaging Machine
Applicable for:
Fryums: Chips ,Kurkure , ,Snacks , Rice Fryums , Masala Rings , Masala Penne , Pasta Fryums , NamkeenFryums , Pop Corn Etc.
Will Pack :10 Gm To 1000 Gm
Speed: 10 – 16 Pouches Per Min (Accord To Product and grammage With Weight Accuracy)
Granule: Nuts, Namkeen , Sand, Rice, Coffee, Pulses, Grains, Fertilizer , Raw Spices Tea , Green Tea , Blended Tea , Vermicelli (Sevai) Etc.
Speed: 08 – 14 Pouches Per Min ( Accord To Product and grammage)
Will Pack : 10 Gm To 1 Kg
Note Best ForLeak Proof Pouches
Model No : SE – 103 C2WF Get A Quote➤ Technical Specifications
| Filling System | Double head Weigh Filler |
|---|---|
| Type Of Sealing | Center Seal |
| Film Roll Type | Laminated Film |
| Speed | Depend on the nature of the product |
| Power | 3.5 KW |
| Optional | Batch Coding Device, Z Elevator |
| Machine Size | 6.5 X 4.5 X 9 Ft (L X W X H) |
| Machine Weight | 400-450kg. (Approx) |
Weighing Pan Capisty10 Gm. To 1000 Gm. With S.Software PLC Controlled With 7 Inch HMI , Unison Brand SSR For Vibration Controlling , Very Easy Operating Program , Delta Brand 10 Amp.X 24 V. SMPS , Super Fine Weight Accuracy , Heavy Duty Vibrator With Long Tray, Fully Adjustable Sealing Unit According To Paper Size , Pneumatic Festo/ Spec Brand , Center Sealing By Double Pneumatic Sealer , 24 V. Panasonic Photocell , Dgtl. Temp. Controller With DC – AC SSR Or Heavy Duty Contactor , Batch Cutter , Dgtl. Volt Mtr. , Dgtl. Amp. Meter , 1 Hp. 3Phase Cromphton Motor With High Speed Gearbox With Innovance 1 Hp. AC. DRIVE For Paper Pulling { Paper Pulling SPEED CAN BE INCREASED OR DECREASED BY Innovance AC Drive } Paper Roll Laser cut Unwinding System With 24 V. DC. Gear Motor 20 Kg. , Laser Cut Paper Trolly Fully Adjustable by AC Motor with gear box, Big SS Hopper , EN – 8 Material Gear , Electric Load 3 Kw. , Big Pouch Tray / Conveyor&Fully S.S Covering.
BODY STRUCTURE IS ALSO SS.
Collar Type Double Head Weighing Filler Pouch Packaging Machine
Boost your production efficiency with our Collar Type Double Head Weighing Filler Pouch Packaging Machine—a high-performance, automatic packaging solution crafted for precision, speed, and durability.
Overview & Key Advantages
This innovative double-head weigher pouch packaging machine combines two independent weighing heads within a collar-type forming unit. The result? Rapid, accurate filling of free-flowing products like snacks, namkeen, dry fruits, pulses, and powders. This machine ensures uniform pouch shape and sealing integrity during high-speed operations, with contact parts made of robust stainless steel for hygienic and long-lasting use.
Simultaneous filling accelerates output while maintaining consistent product weight.
Enhances precision in pouch shape and seal quality, especially for heavier or non-uniform products.
Contact surfaces ensure hygienic operation and easy cleaning for food products.
Achieve filling precision within ±0.5%.
Technical Features
- High-Speed Output – Capable of packaging 450–500 pouches per hour, depending on product density and packaging size.
- Intelligent Controls – Equipped with a 24-bit logic controller and microprocessor panel for precise control and quick changeovers.
- Energy-efficient design and heavy-duty structure for long life.
- Optional nitrogen flushing and HMI for advanced functionality.
Ideal Applications
This collar-type weigher filler packaging machine excels in packaging:
- Namkeen, chips, snacks, and fryums
- Dry fruits, nuts, pulses, grains, and seeds
- Sugar, salt, spices, and powdered foods
Business Benefits
- Enhanced Efficiency – Dual heads double throughput compared to single head machines.
- Outstanding Accuracy – Minimized product giveaway reduces cost per unit and waste.
- Energy Efficient – Optimized motor and pneumatic systems consume less power per pouch.
- Built to Last – Heavy-duty frame and premium materials deliver dependable performance over time.
- Hygienic Design – SS contact parts support strict food safety and easy maintenance.
Optional Upgrades
- Nitrogen Flushing – Extend shelf life for oxygen-sensitive products.
- HMI Touchscreen Panel – For user-friendly operation and real-time diagnostics.
- Level Sensors & Automatic Feeders – Automate refill cycles for continuous operation.
- Multi-Head Capability – Upgradeable to 4 or 6 heads for increased output and flexibility.
Words from the Field
Many packaging professionals highlight the reliability of multi-head weigher systems for precise packaging. Multi-head weighers combined with form-fill systems significantly improve speed and packaging accuracy—ideal for granules, snacks, and other bulk products.
Why Choose Us?
At Sahil Packaging Industries, we specialize in tailoring collar-type weighing filler packaging machines to meet your specific production needs—from snack foods to granular and powdered goods. Whether optimizing for speed, precision, or hygiene, our solutions deliver results.
- Local Support – Based in Faridabad, we provide responsive customer service, installation support, and training.
- Custom Engineering – Need a unique specification? We can adapt the machine to your product’s volume, weight, or packaging material.
- Export & Quality Assurance – Trusted by clients both in India and abroad, we uphold international standards in design and delivery.
