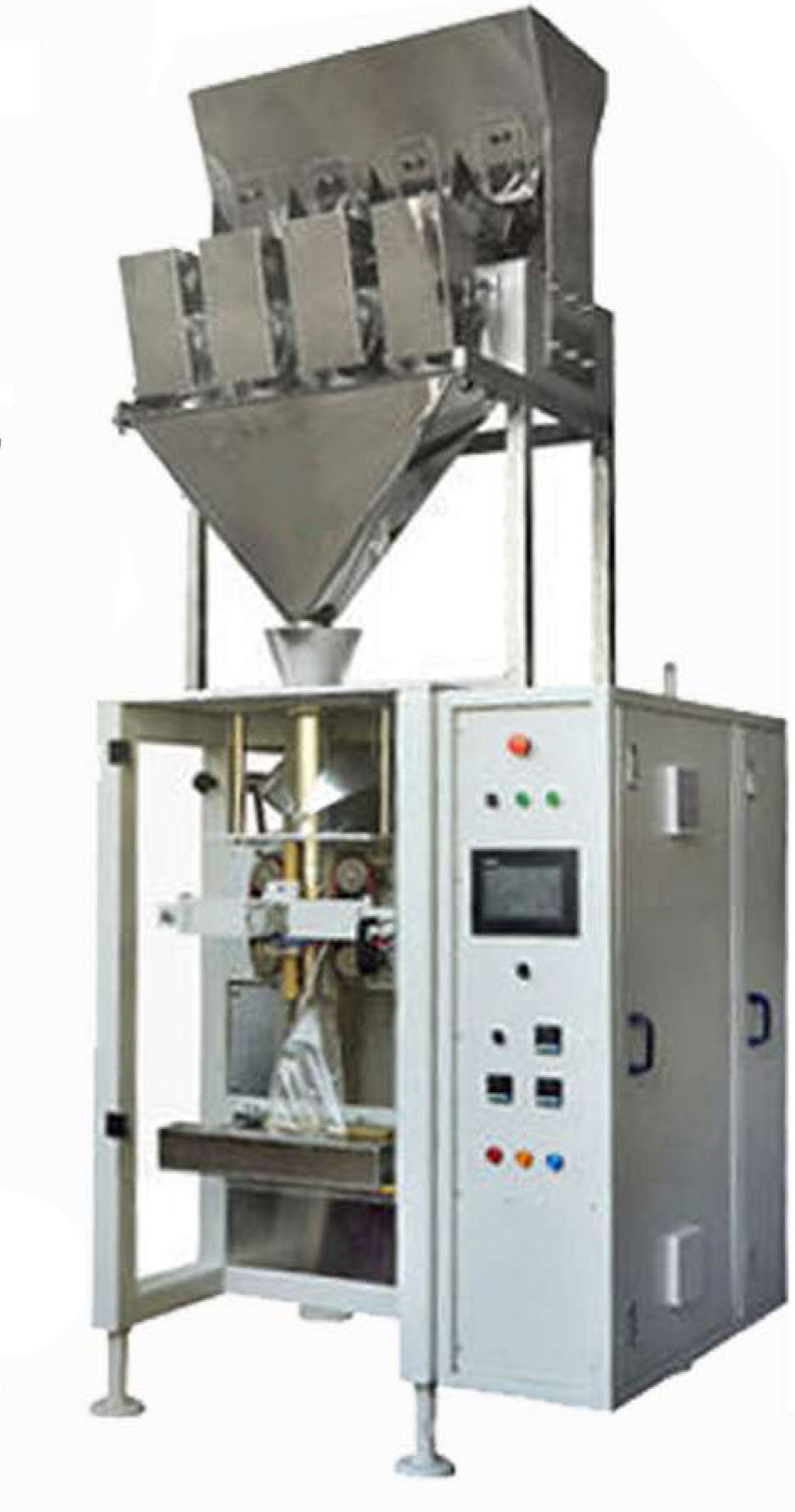

Collar with Four / Five / Six / Seven Head Weighing Filler Pouch Packaging Machine
Applicable for:
Fryums: : Chips ,Kurkure , ,Snacks , Rice Fryums , Masala Rings , Masala Penne , Pasta Fryums , NamkeenFryums , Pop Corn Etc.
Will Pack :10 Gm To 1000 Gm
Speed: :15 – 20 Pouches Per Min (Accord To Product and grammage With Weight Accuracy)
Granule: Nuts, Namkeen , Sand, Rice, Coffee, Pulses, Grains, Fertilizer , Raw Spices Tea , Green Tea , Blended Tea , Vermicelli (Sevai) Etc.
Speed: 15 – 20 Pouches Per Min ( Accord To Product and grammage)
Will Pack : 10 Gm To 1 Kg
Note Best ForLeak Proof Pouches
Get A Quote➤ Technical Specifications
| Filling System | Four head Weigh Filler |
|---|---|
| Type Of Sealing | Center Seal |
| Film Roll Type | Laminated Film |
| Speed | Depend on the nature of the product |
| Power | 3.5 KW |
| Optional | Batch Coding Device, Z Elevator |
| Machine Size | 6.5 X 4.5 X 9-9.5Ft (L X W X H) |
| Machine Weight | 400-480kg. (Approx) |
Weighing Pan Capisty10 Gm. To 1000 Gm. With S.Software PLC Controlled With 7 Inch HMI , Unison Brand SSR For Vibration Controlling , Very Easy Operating Program , Innovance Brand 10 Amp.X 24 V. SMPS , Super Fine Weight Accuracy , Heavy Duty Vibrator With Long Tray, Fully Adjustable Sealing Unit According To Paper Size , Pneumatic Festo/ Spec Brand , Center Sealing By Double Pneumatic Sealer , 24 V. Panasonic Photocell , Dgtl. Temp. Controller With DC – AC SSR Or Heavy Duty Contactor , Batch Cutter , Dgtl. Volt Mtr. , Dgtl. Amp. Meter , 1 Hp. 3Phase Cromphton Motor With High Speed Gearbox With Innovance 1 Hp. AC. DRIVE For Paper Pulling { Paper Pulling SPEED CAN BE INCREASED OR DECREASED BY Innovance AC Drive } Paper Roll Laser cut Unwinding System With 24 V. DC. Gear Motor 20 Kg. , Laser Cut Paper Trolly Fully Adjustable by AC Motor with gear box, Big SS Hopper , EN – 8 Material Gear , Electric Load 3 Kw. , Big Pouch Tray / Conveyor&Fully S.S Covering.
BODY STRUCTURE IS ALSO SS.
