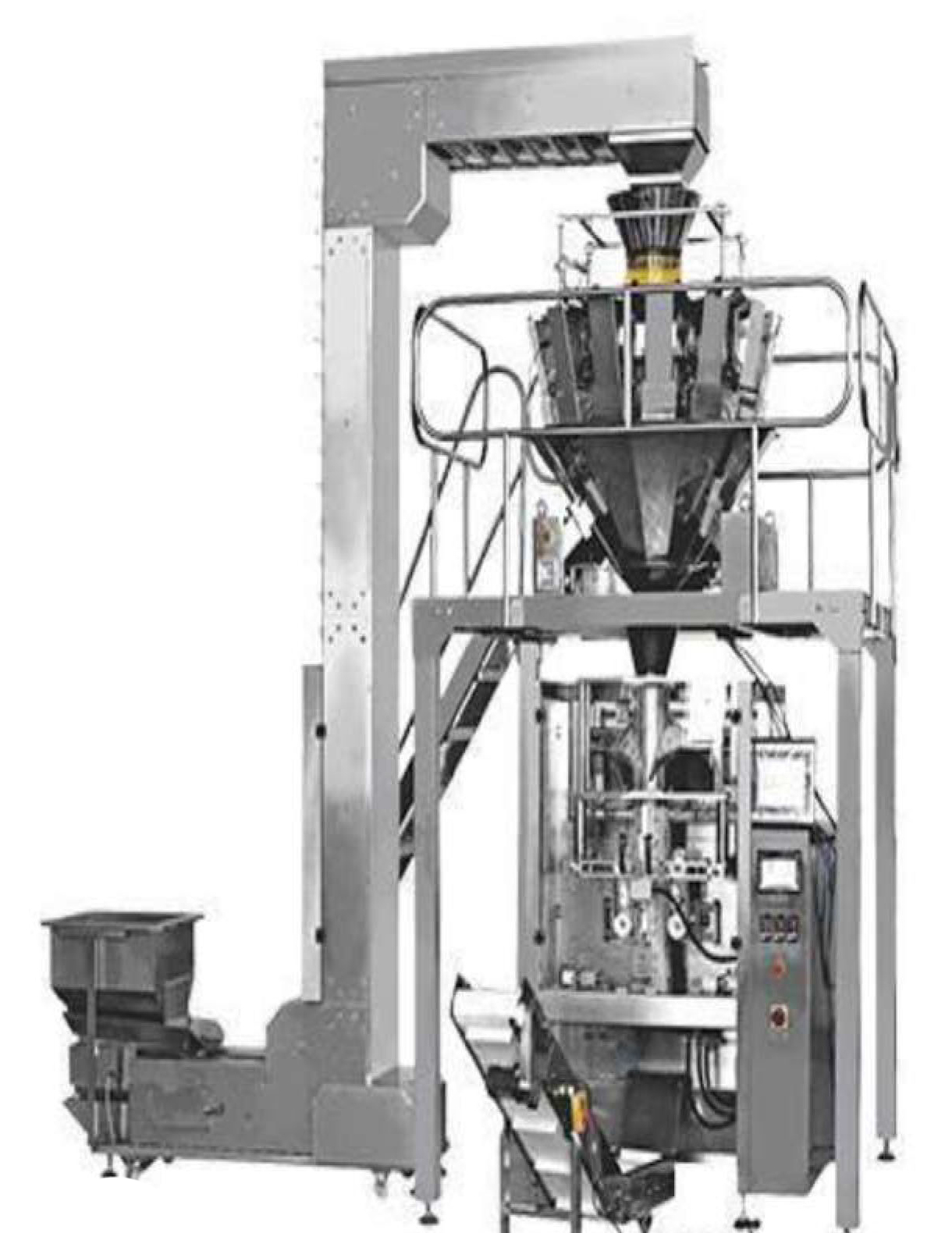

Collar with Multy Head Weighing Filler Pouch Packaging Machine
Applicable for:
Fryums: : Chips ,Kurkure , ,Snacks , Rice Fryums , Masala Rings , Masala Penne , Pasta Fryums , NamkeenFryums , Pop Corn Etc.
Will Pack :10 Gm To 1000 Gm
Speed: :45 – 55 Pouches Per Min (Accord To Product With Weight Accuracy)
Granule: Nuts, Namkeen , Sand, Rice, Coffee, Pulses, Grains, Fertilizer , Raw Spices – Black Paper , Cardamom,Tea , Green Tea , Blended Tea , Lollipop , Vermicelli (Sevai) Etc.
Speed: 35 – 55 Pouches Per Min ( Accord To Product )
Will Pack : 10 Gm To 1 Kg
Note Best ForLeak Proof Pouches
Get A Quote➤ Technical Specifications
| Filling System | TenHead Weigh Filler(Brand-Multi Weigh) |
|---|---|
| Type Of Sealing | Center Seal |
| Film Roll Type | Laminated Film |
| Speed | Depend on the nature of the product |
| Power | 5 KW |
| Optional | Batch Coding Device, Z Elevator, Air Compressor |
| Machine Size | 6.5 X 4.5 X 11 Ft (L X W X H) |
| Machine Weight | 550kg. (Approx) |
Weighing Pan Capacity10 Gm. To 1000 Gm. With 7 Inch HMI , Very Easy Operating Program , Delta Brand 10 Amp.X24 V. SMPS , Super Fine Weight Accuracy , Fully Adjustable Sealing Unit According To Paper Size , Pneumatic Festo/ Spec Brand , Center Sealing By Double Pneumatic Sealer , 24 V. Panasonic Photocell , Dgtl. Temp. Controller With DC – AC SSR Or Heavy Duty Contactor , Batch Cutter , Dgtl . Volt Mtr. , Dgtl. Amp. Meter , 1 Hp. 3Phase Crompton/Godrej/Heavells/Motion Motor With High Speed Gearbox With Innovance 1 Hp. AC. DRIVE For Paper Pulling { Paper Pulling SPEED CAN BE INCREASED OR DECREASED BY Innovance AC Drive } Paper Roll Laser Cut Unwinding System With 24 V. DC. Gear Motor 20 Kg. , Laser Cut Paper Trolly Fully Adjustable by AC Motor with gear box EN – 8 Material Gear , SS Body Z Elevator with heavy duty vibrater, Heavy duty multy head stand 8ft* 8 ft with SS Gril, Removable Heavy duty SS Stair Electric Load 5 Kw. , Big Pouch Tray / Conveyor &Fully S.S 304 Covering.
BODY STRUCTURE IS FULLY SS.
