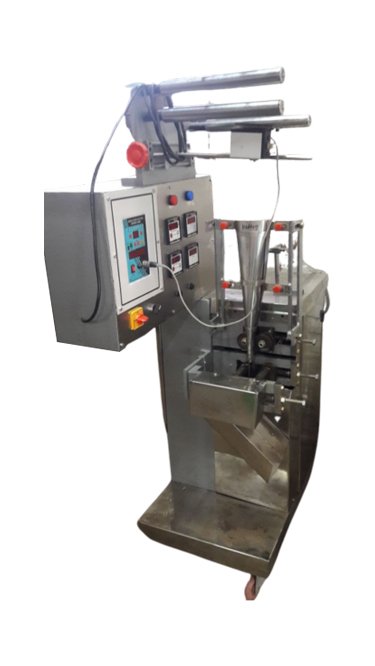

FFS with Liquid Filler – Rotating / Clock/ Jhula Pump
Applicable For:
- Liquid: - Oil, Sauces, Puree, Syrups, Cosmetic Toner, Vegetable Oil, Alcohol, Wines, Rubbing Alcohol, Pharmacy Liquids, Fertilizer Liquid, Chemical Liquid, Shampoo Etc. (Up To 50 Ml)
- Speed: 25 – 50 Pouches Per Min ( Accord To Product AND grammage )
| Technical Specifications | |
|---|---|
| Capacity | Up to 50 ml |
| Filling System | Liquid Filler |
| Filling Accuracy | +/- 0.1% (Depends on Nature of Product) |
| Sealing Type | Center Seal / 4 Side Seal / 3 Side Seal |
| Packing Material | Laminated Film |
| Contact Part | SS-304 / SS-306 |
| Dimension | 2.5 X 3 X 5.5 Ft (L × W × H) |
| Power | 220 Volt Single Phase |
| Optional | Batch Coding Device |
| Machine Weight | 300 kg (Approx.) |
Digital Photocell Controller, Dgtl. Temp. Controller, Dgtl . Volt Mtr. Dgtl. Amp. Meter , ½ Hp Crompton/Godrej/Havel Motor With High Speed Gear Box (Speed can be increased or decreased by inovance AC Drive ) Heavy duty PC Motor for eye Mark cutting Big Ss Hopper , En – 8 Material Gear , Big Pouch Tray & Fully S.S 304/316 Covering.
